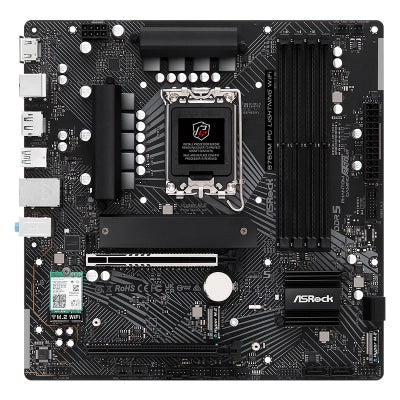

Motherboard ASRock B760M PG Lightning WiFi, Chipset Intel B760, LGA 1700, DDR5, Wi-Fi 6E, HDMI, DP, mATX

Motherboard ASRock B760M PG Lightning WiFi, Chipset Intel B760, LGA 1700, DDR5, Wi-Fi 6E, HDMI, DP, mATX

SKU: mbarb760mpgln-r¡Última unidad!

S/.4,46253 -4.5% Transferencia, Yape o Plincon el código YAPE2
S/.4,67281 Precio tarjetaVisa, Mastercard, Amex, Diners
Medios de pago y cuotas sin interés

Cuotas sin interés

1 cuotaS/.4,67281
3 cuotas sin interés3 × S/.1,55760

Con tarjetas de crédito aprobadas por Mercado Pago: BBVA, Interbank, Scotiabank, Diners Club, BCP, entre otros.

Medios de pago

  • Yape, Plin o transferencia (−4.5%): usa el código YAPE2 y elige «Yape / Plin / Transferencia». Te enviamos los datos por WhatsApp y despachamos al confirmar el abono.
  • Tarjetas de crédito y débito: Visa, Mastercard, Amex y Diners con Mercado Pago.
  • Billeteras y efectivo: Yape, Plin y PagoEfectivo.

Pago 100% seguro con

  • Visa
  • Mastercard
  • American Express
  • Diners Club
  • Yape
  • Plin
  • Mercado Pago
  • PagoEfectivo
¿Compras para empresa o más de una unidad? Cotizar por WhatsApp Cotización automática
Calculando fecha de entrega…
100% ORIGINAL Producto 100% OriginalAutenticidad respaldada por nuestro proveedor
Garantía por defectos de fábricaAtención y gestión de garantía a través de Prime Outlet

Especificaciones técnicas
General
MarcaASRock
Rendimiento
Procesador- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology; - Supports Intel® Thermal Velocity Boost (TVB); - Supports Intel® Adaptive Boost Technology (ABT)
Chipset- Intel® B760
BIOS- 128Mb AMI UEFI Legal BIOS with GUI support
SlotsCPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD CrossFire™
AlmacenamientoCPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
RAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Pantalla e imagen
Rear panel i/o- 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
Audio
Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Conectividad
LAN- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Phantom Gaming LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
Wireless LAN- 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.3 + High speed class II; - Supports MU-MIMO
USB- 1 x USB 3.2 Gen1 Type-C (Rear); - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front); - 6 x USB 2.0 (2 Rear, 4 Front)
Software y seguridad
Software and UEFISoftware; - ASRock Motherboard Utility (Phantom Gaming Tuning); - ASRock Phantom Gaming LAN Software*; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock My Favorites in UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash; - ASRock Easy RAID Installer
Sistema operativo- Microsoft Windows® 10 64-bit / 11 64-bit
Garantía y contenido
Certifications- FCC, CE; - ErP/EuP ready (ErP/EuP ready power supply is required)
Otras especificaciones
Unique featureSuperb Productivity; - PCIe Gen5 (Graphics); - Dual Channel DDR5; Rock-Solid Durability; - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT; Ultrafast Connectivity; - 2.5G LAN, 802.11ax Wi-Fi 6E; Module EZ Update; - ASRock Auto Driver Installer; EZ Troubleshooter; - ASRock Post Status Checker
Memory- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 256GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
Graphics- Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Connector- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Accessories- 1 x User Manual; - 1 x I/O Shield; - 2 x SATA Data Cables; - 2 x SMA WiFi Antenna Cables; - 2 x ASRock WiFi 2.4/5/6 GHz Antennas; - 1 x Plastic Cover for Wi-Fi Module; - 3 x Screws for M.2 Sockets; - 1 x Standoff for M.2 Socket
Form factor- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Características y descripción

Soporta procesadores Intel® Core™ de 14ª, 13ª y 12ª generación (LGA1700); 7+1+1 Power Phase, Dr.MOS para VCore+GT.

4 x DDR5 DIMMs Dual Channel, hasta 7200+ (OC); 1 PCIe 5.0 x16, 1 PCIe 3.0 x16; 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4).

Salidas HDMI y DisplayPort; Realtek ALC897 7.1 HD con Nahimic Audio.

Dragon 2.5G LAN y 802.11ax WiFi 6E + Bluetooth 5.3.

  • Unique feature: Superb Productivity; - PCIe Gen5 (Graphics); - Dual Channel DDR5; Rock-Solid Durability; - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT; Ultrafast Connectivity; - 2.5G LAN, 802.11ax Wi-Fi 6E; Module EZ Update; - ASRock Auto Driver Installer; EZ Troubleshooter; - ASRock Post Status Checker
  • CPU: - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology; - Supports Intel® Thermal Velocity Boost (TVB); - Supports Intel® Adaptive Boost Technology (ABT)
  • Chipset: - Intel® B760
  • Memory: - Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 256GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
  • BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics: - Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  • Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
  • LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Phantom Gaming LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
  • Wireless LAN: - 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.3 + High speed class II; - Supports MU-MIMO
  • Slots: CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD CrossFire™
  • Storage: CPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
  • RAID: - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB: - 1 x USB 3.2 Gen1 Type-C (Rear); - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front); - 6 x USB 2.0 (2 Rear, 4 Front)
  • Connector: - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • Rear panel i/o: - 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI: Software; - ASRock Motherboard Utility (Phantom Gaming Tuning); - ASRock Phantom Gaming LAN Software*; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock My Favorites in UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash; - ASRock Easy RAID Installer
  • Accessories: - 1 x User Manual; - 1 x I/O Shield; - 2 x SATA Data Cables; - 2 x SMA WiFi Antenna Cables; - 2 x ASRock WiFi 2.4/5/6 GHz Antennas; - 1 x Plastic Cover for Wi-Fi Module; - 3 x Screws for M.2 Sockets; - 1 x Standoff for M.2 Socket
  • Form factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • OS: - Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications: - FCC, CE; - ErP/EuP ready (ErP/EuP ready power supply is required)
  • Garantía: 36 meses
